Siemens PLC Control System Tube Ice Machine With LG Electric Accessories

Product Categories

Ice Tube Machine [167]
Solid Flat Cut Ends Tube Ice Machine [7]
Flake Ice Machine [102]
Ice Cube Machine [140]
Ice Block Machine [117]
Double Spiral Freezer [33]
Quick Tunnel Freezer [29]
Ice Ball Maker Machine [28]
Plate Ice Machine [16]
Containerized Block Ice Machine [12]
Freezer Cold Room [36]
Commercial Blast Freezer [23]
Container Cold Room [15]
Ammonia Tube Ice Machine [4]

Guangzhou Icesource Refrigeration Equipment Co., LTD

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Siemens PLC Control System Tube Ice Machine With LG Electric Accessories

Name: Siemens PLC Control System Tube Ice Machine With LG Electric Accessories
Brand: CBFI
Price: 1 USD

Brand Name : CBFI

Model Number : TV10-TV300

Certification : CE, ISO9001,ISO14001

Place of Origin : China

MOQ : 1 set

Price : USD 1~10000000

Payment Terms : T/T, L/C, Western Union, MoneyGram

Supply Ability : 50 sets/ month

Delivery Time : 30 days after the deposit

Packaging Details : wooden case or Bubble film

Condition : Brand new

Output : 1 ton to 30 tons

Tube ice diameter : 22mm, 28m, 35mm

Machine shipping : one 20 feet container or one 40 feet container

Compressor : Germany / Germany Bock/ Taiwan Hanbell

Control : Germany Siemens

Contact Now

CBFI Siemens PLC Control System, Germany compressor, LG electric accessories Ice Tube Machine

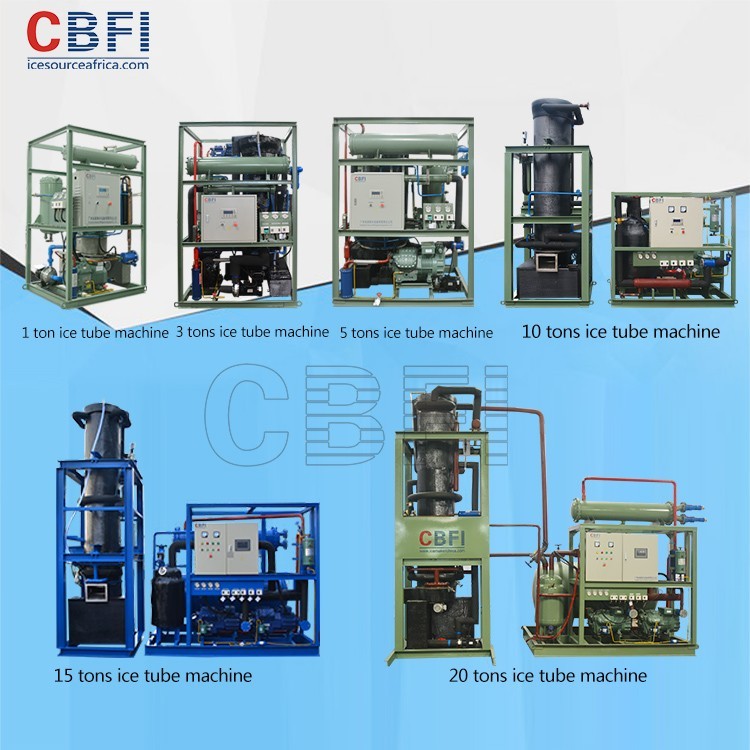

Tube Ice Maker Machine Models for Reference

Item No.	Production	Compressor Rated Power	Circulating Water Pump Power	Cooling Water Pump Power	Cooling Fan Power	Ice Cutter Motor Power	Machine Dimension	Weight of Machine
	Ton/24H	KW	KW	KW	KW	KW	*LWH*	KG
TV10	1.0	3.69	0.37	1.1	0.18	0.75	*13209501800*	900
TV20	2.0	7.11	0.55	1.1	0.18	0.75	*140011001800*	1200
TV30	3.0	9.68	0.55	1.1	0.37	0.75	*150011001950*	1500
TV50	5.0	17.47	0.55	1.5	0.75	0.75	*160012502200*	1800
TV100	10.0	30.89	0.75	2.2	1.5	1.5	*170013002200*	3500
TV150	15.0	42.6	1.5	2.2	2.2	1.5	*300015002200*	4250
TV200	20.0	53.2	1.5	2.2	2.2	1.5	*350015002200*	6500

Machine running condition: water temperature 23°C, evaporate temperature -12°C,condensing temperature 40°C, reference valve under 50Hz power condition. Real production of machine will have a little change according to change of water temperature

Siemens PLC Control System Tube Ice Machine With LG Electric Accessories

Commercial used Tube Ice machine

1.Daily Capacity : 1 ~ 30 ton

2.Ice making cycle : 20 ~ 25 mins

3.Ice Diameter : 22mm,28mm,35mm.

Installation:

1). Installing by the user: we will tested and install well the machine before shipment, all necessary spare parts, operation manual and CD are provided to guide the installation.

2).Installing by our engineers:

(1) We can send our engineer to assist the installation and provide technical support and train your workers. The end-user provide accommodation and round-trip ticket for our engineer.

(2) Before our engineer arrived in your site, the installation place, electricity, water and installation tools should be ready. Meanwhile, we will provide you a Tool List with the machine when delivery.

(3) All spare parts are provided according to our standard. During installation period, any shortage of parts due to the actual installation site, the buyer is required to afford the cost, such as water pipes.

(4) 2~ 3 workers are required to assist the installation for big project.

Siemens PLC Control System Tube Ice Machine With LG Electric Accessories

We have customer in China, Malaysia, Indonesia, Philippine, Maldives, Vietnam, Thailand, Myanmar(Burma), Dubai, Syria, Iran, Saudi Arabia, Egypt, Lebanon, Sudan, Oman, Mexico, Venezuela, Argentina, Nigeria, Angola, Congo, South Africa, Niger, Benin, Cameroon, Burkina Faso, Guinea, Guinea-Bissau, Mozambique, Papua New Guinea……
