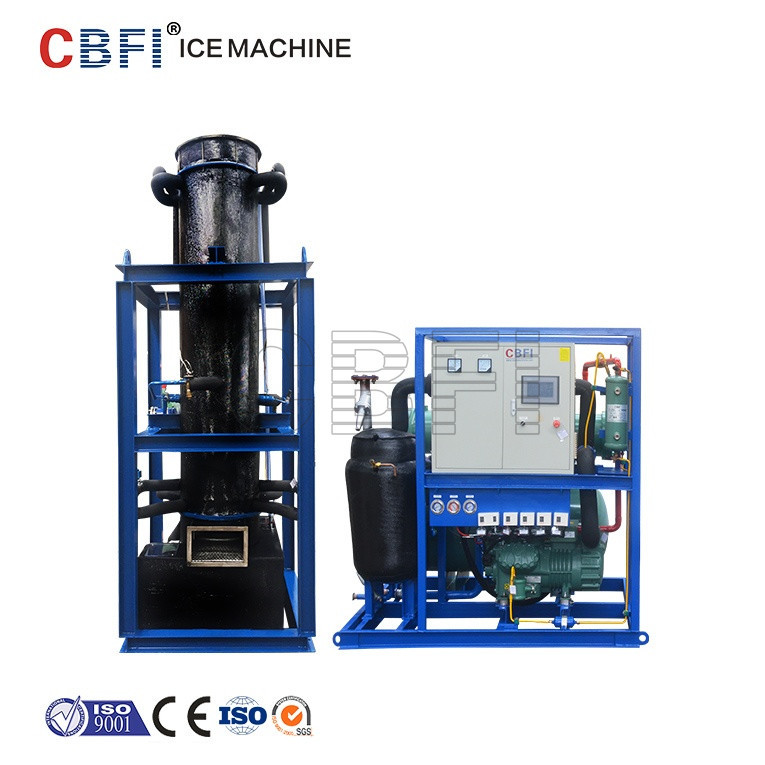

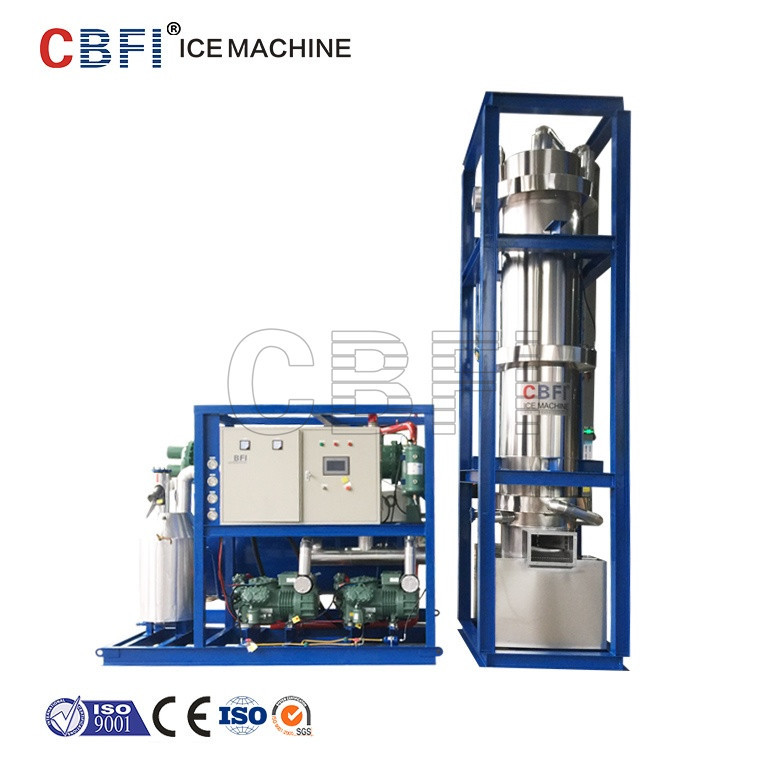

High Efficiency Automatic Type Tube Ice Machine Siemens PLC Control System
1. Tube Ice Application:
Human consumption
Drinks & coffee shop, bar, hotel, restaurant
Supermarket, stores, food market
Food Processing factory
Poultry processing factory
Chemical and concrete project
Hospital & Medical care
2. Tube Ice Machine Facture:
1)Daily capacity from 1000 kg to 50,000 kg for optional, price different according to the machine capacity

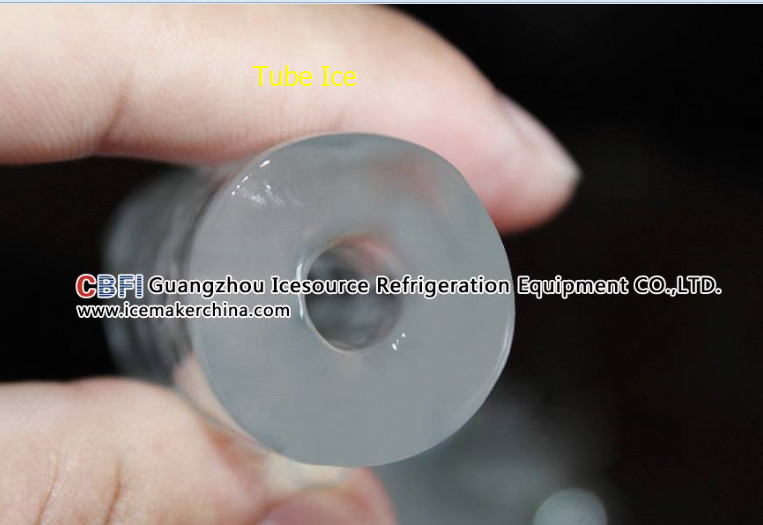

2)Tube ice diameter 22 mm, 28mm, 35 mm for optional
3)Ice Making Automatically, monitored by Germany Siemens, no need people stand by
4) High efficiency running, power consumption 68 kw.h per ton ice
5) Ice output
3. Machine parameter
| | Model | Ice Making Capacity | Rated Power | Circulating Water Pump Power | Cooling Water Pump Capacity | Cooling Fan Capacity | Ice Cutter Motor | Dimension | Weight of Machine | | No. | Ton/24h | kw | kw | kw | kw | kw | W*H*L(mm) | KG | | TV10 | 1.0 | 4.28 | 0.55 | 1.1 | 0.18 | 0.75 | 1100*900*1760 | 900 | | TV20 | 2.0 | 7.77 | 0.55 | 1.5 | 0.37 | 0.75 | 1250*1000*1950 | 1200 | | TV30 | 3.0 | 12.33 | 1.1 | 1.5 | 0.56 | 0.75 | 1400*1100*2200 | 1500 | | TV50 | 5.0 | 21 | 1.5 | 2.2 | 0.75 | 1.5 | 1600*1400*2250 | 1800 | | TV100 | 10.0 | 29.2 | 1.5 | 4 | 1.5 | 1.5 | 1200*1200*3100 2300*1550*1800 | 3500 | | TV150 | 15.0 | 49 | 2.2 | 5.5 | 1.5 | 1.5 | 1500*1200*4500 2700*1950*2250 | 4250 | | TV200 | 20.0 | 58.5 | 1.5 | 5.5 | 2.2 | 2.2 | 1600*1300*4700 3100*2200*2250 | 6500 | | TV300 | 30.0 | 87.6 | 2.2 | 15 | 2.2 | 2.2 | 3000*2200*2500 2200*1900*6200 | 7200 | |
4. Company Introduction
Guangzhou Icesource Co,.Ltd was established in 2004, specialized in ice machine and cold room manufacture, including cube ice machine, tube ice machine, block ice machine, flake ice machine, plate ice machine, water chiller and cold room and so on. Our products has been exported to Europe, North and South America, Asia, Middle East, Africa, more than130 countries.
The headquarter of CBFI located in beautiful Guangzhou city, with branch companies include Huibo Electromechanical Installation Project Co,. Ltd.,and Icesouce (Nigeria).
FAQ
1:Q: Can the power supply be single phase? A: Single phase electricity is not applicable. It need the industrial supply electricity for the whole plant, that is to say it needs 3 phase electricity, 380~420V/50Hz/3P or 220~240V/ 60Hz/3P, or other types.
For special power supply type, we will design a special motor for you. So please kindly tell me your local industrial power supply when you send the inquiry, we will offer you based on the exact requirement.
2:Q: If this is my first time to invest ice business, what kind of factor I need to prepare for it?
A: Firstly it is better for you to do some marketing investigation to decide how big capacity machine you need to invest. Secondly you need to check that if there is clean water and power supply for the machine. If the power supply is not stable, many customers consider to equip power generator. As for water, it is better to equip water treatment to make pure water, filling inside machine to make ice.
Water treatment to pure water → ice machine to make ice → digital scale and sealing machine to pack ice bags → cold room to store ice
3:Q: Do you make testing and commissioning before you deliver the machine?
A: Yes, all of our machines will be tested and commissioned at least 3 days to ensure sufficient output and stable performance before delivery. When you get the machine, you just need to connect water and power to make ice.
4:Q: As for the edible ice making machine, which one is more popular, tube ice machine or cube ice machine?
A: The popularity depends on customers' habits. And both our cube ice machine and tube ice machine have a good marketing. According to our marketing experience, customesr from Southeast Asia and South America prefer tube ice; and customers from Middle East countries prefer cube ice.
