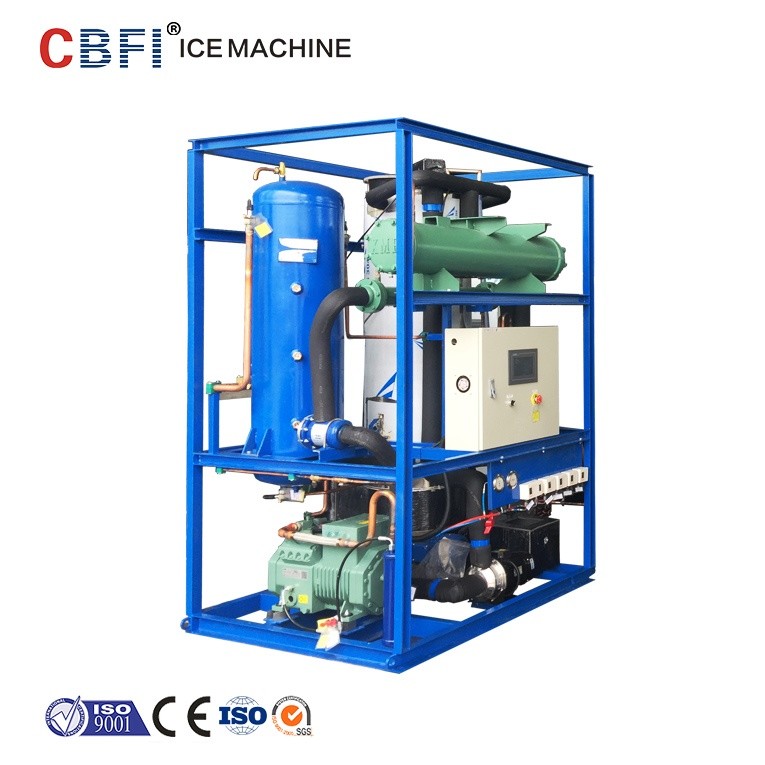

Name: 5 ton/24h Edible Tube Ice Machine
Daily Capacity: 5000kg Per 24 hours
Machine Demension: 1600*1400*2250mm
Model: TV 50
making ice water: clean water
Ice Output Information:
Ice Shape: Tube
Ice Diameter: 22mm, 28mm, 35mm
Freezing Time: 16~22min
Ice Density: 500kg~550kg
Ice Mould Material: Seamless Stainless Steel 304 Tube (Made In Japan)
Application:
1. It is edible
2. Be put in wine
3. Cool food stuffs
4. Widely used in restaurants, cold drink stores, bars, hotels and so on.
Tube ice machine features:
1. Perfect design: adopt 3D simulation assembly, compact structure,easy to operate and maintain
2. Evaporator and water tank is made from stainless steel, it can keep the ice making water clean and the ice can be edible.
3. PLC system control the machine automatically. The machine can produce ice, clean itselfe, deal with problems automatically.
1 ton to 30 tons parameters
| Item | Compressor | Water circulating pump | Ice cutter | Cooling tower | Water pump |
| Cooling capacity | Power | Power | Power | Fan Motor Power | Power |
| 1 ton | 17.8 KW | 7.2 KW | 0.37 KW | 0.75 KW | 0.18 KW | 1.1 KW |
| 2 tons | 22.3 KW | 7.9 KW | 0.55 KW | 0.75 KW | 0.37 KW | 1.5 KW |
| 3 tons | 30.1kw | 10.6 kw | 1.1 KW | 0.75 kw | 0.56 KW | 1.5 KW |
| 5 tons | 60.2 kw | 19.9 kW | 1.5 KW | 1.5 KW | 0.75 kw | 2.2 KW |
| 10 tons | 83.3 kW | 29.2 kW | 1.5 KW | 1.5 KW | 1.5 KW | 4 kw |
| 15 tons | 139 kw | 49 kW | 2.2 KW | 1.5 kw | 1.5 kw | 5.5 kw |
| 20 tons | 166.6 kw | 58.5 kw | 2.2 kw | 2.2 kw | 2.2 kw | 5.5 kw |
| 30 tons | 249.9 kw | 87.6 kw | 2.2 kw | 2.2 kw | 2.2 kw | 7.5 kw |
| | |
Note:
The above information based on water cooling condenser.
Size of machine is the same with the size before
installation.
It didn’t mention size of cooling tower, because cooling tower usually install in the outside.
1. Our professional after-sale team and techicians are ready to help with your project all the time.
2. We offer you the comprehensive manual book, installation video and pictures.
3. We can provide you with the design drawing and our technicians can install the machine for you.
4. The warranty of the whole machine is 12 months.
1. Standard wooden case.
2. Whole set of ice machine contain: ice machine, cooling tower, water pump, water pipes and water pipe fittings and other spar parts.
4. All required components for installing the machine will be provided by us.
5. We will deliver the goods in 35 days since the advanced payment arrived at our bank account
1. The payment can be T/T,L/C,Western Union, Money Gram and in Cash.
2. The deposit is 30%, after we receive your deposit, we will start to produce the machine for you. The balance 70% should be paid before shipping.
