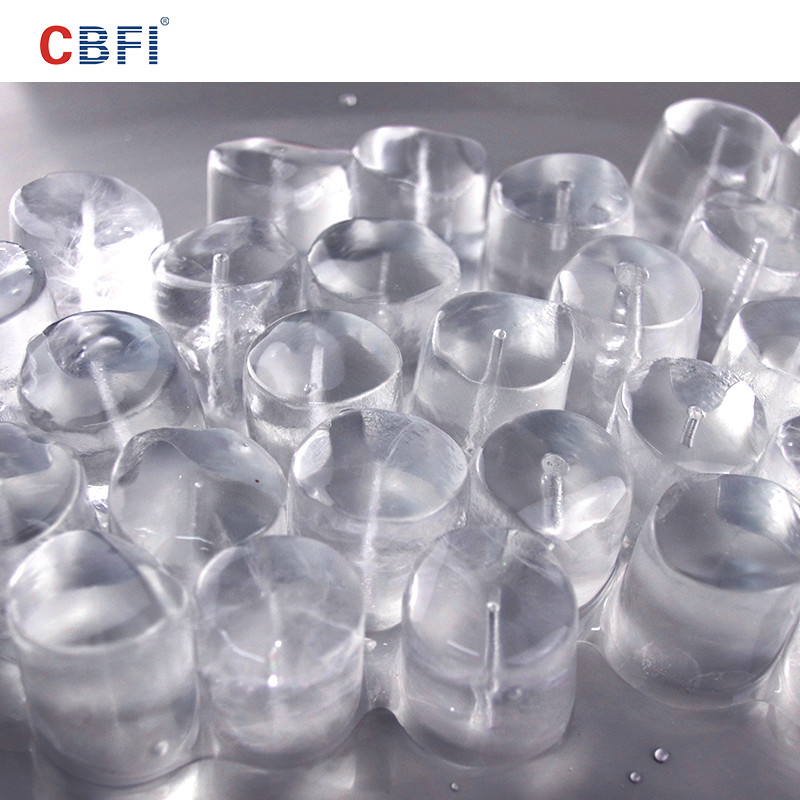

1. Ice tube machine for produce food grade ice too, tube ice is edible ice.

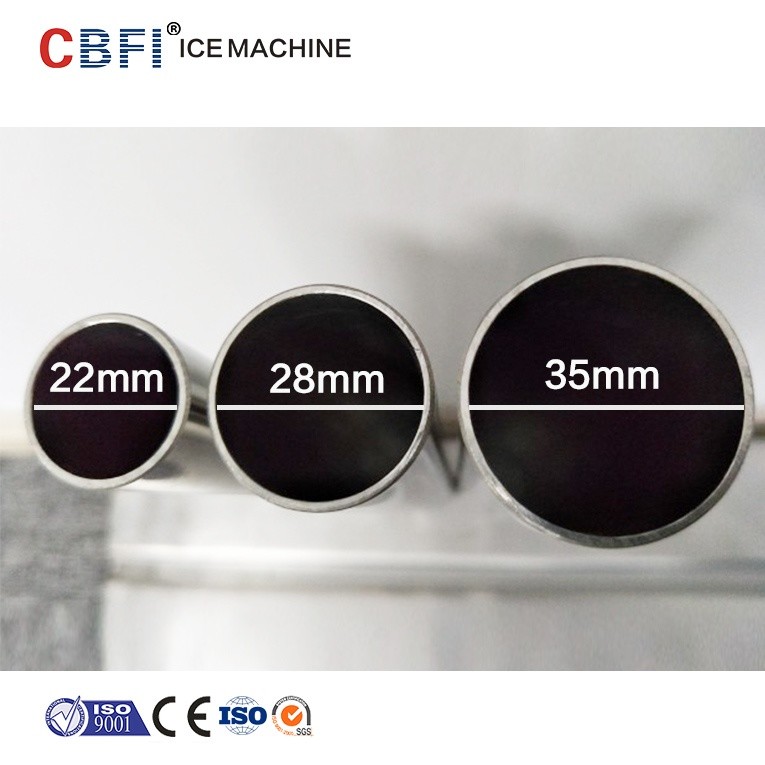

2. Diameter of tube ice we usually design it as 22mm, 28mm, or 35mm,Length of ice is about 30mm to 50 mm.
3. Daily capacity of ice tube machine can be from 1ton to 40tons.
4. Tube ice macine was designed save space, high efficiency heat exchange, and energy saving, so it is widely favored by market.
| TV10 1 ton Tube Ice Machine Parameters |
| Name | Unit | Parameter |
| Tube Diameter | mm | Φ22 | Φ28 | Φ35 |
| Compressor Parameter | Model | 4EES-4 |
| Cooling Capacity(kW) | 11.04 |
| Power(kW) | 4.1 |
| Condenser | Model | WN-5 |
| Heat Exchange(kW) | 19.4 |
| Condensing Temperature | Degree Celsius(℃) | 40 |
| Evaporating Temperature | Degree Celsius(℃) | -12 |
| Ambient Temperature | Degree Celsius(℃) | 32 |
| Water Temperature | Degree Celsius(℃) | 20 |
| Refrigerant | | R507 |
| Voltage | V/P/HZ | 380/3/50 |
| Motor Power | Ice Cutting Motor(kW) | 0.75 |
| Recircling Pump(kW) | 0.37 |
| Cooling Tower | Model | LX-8 |
| Power(kW) | 0.25 |
| Cooling Pump | Model | GD40-15 |
| Power | 1.1 |
| Cooling Fan Power | Power(kW) | 0.18 |
| Water Cooling Machine Dimension | L*W*H(mm) | 1100*900*1780 |
| Refrigerant Quantity | kg | 50 | 53 | 58 |
| Machine Weight | kg | 900 |
Application:
1. It can be directly eaten
2. It can be used to freeze drinks
3. Mix wines
4. Cool food stuffs
5. Make ice pastries and keep fresh
Features:
1. Perfect design: adopt 3D simulation assembly, compact structure,easy operate and maintain
2. Health: all the metal of the ice-making machine that will touch with water are SUS304,impurities and metal ions that effect transparent function was discharged from circulating bin during the end of each cycle of ice making.
3. Efficient performance: ice maker adopt special alloy material and with special heat treatment, make the ice maker with best thermal performance.
4. Full automatically: PLC system controls the whole ice making process.
Note:
The above information is according to adopt water cooled condenser.
Size of machine is before installation. Size of machine is the same with the size before
installation.
It didn’t mention size of cooling tower, cooling tower usually install in the outside.
Machine running condition:
1. water temperature: 28Centi degree,
2. evaporate temperature: -12Centi degree,
3. condensing temperature: 40Centi degree,
4. reference valve under 50Hz power supply.
Real production of machine will have a little change according to change of water
temperature and ambient temperature.
1. We have a large after-sale service team. All the technicians are very experienced, they always go to different countries to serve customers like you.
2.The warranty of the whole machine is 12 months.
Packaging & Shipping
1. Standard wooden case.
2. Completely ice machine contain: ice machine, cooling tower, water pump, water pipes and water pipe fittings.
3. Machine come into use, customer only need prepare power for the machine.
4. All required components for install the machine will be provided.
FAQ
some questions and answers here:
1. Q: are you add refrigerant in the ice machine?
A: yes, the machine is full of refrigerant, once with water and electric it can work. yes, ice machine leaves factory with carefully examination after it was produced for 3 to 5 days. And when we install them at customer’s factory, we retest the ice machines.
2. Q: do you test the ice machine in your factory?
A: yes, ice machine leaves factory with carefully examination after it was produced for 3 to 5 days. And when we install them at customer’s factory, we retest the ice machines.
3. Q: can you load ice machine into container?
A: we have containerized ice block machine. Our export ice machine is designed based on the standard of container, it is easily to load. The 25kg ice of 10tons can load in container of 40 feet. for domestic ice machine of over 12 tons per day, we design based on the standard of truck, which can easily drive into your factory.
4. Q: all your ice machine is based on 380V 50HZ power requirement? Do you have the right power requirement for abord? Such as 440V 60HZ or 220V three phase that suitable for America?
A: our ice machine and power,voltage can suitable for your country, please make the power requirement be clear in your order.
