Two Sets of 30-ton Tube Ice Machines In South Korea Established An Ice Factory To Sell Cup Ice
Tube Ice Machine Project Description
Project Nation:South Korea
Customer Backgroun:Ice Making Factory
Project Purpose:Set up an ice factory to sell the cup ice
Characteristics Of The Project Area:
1. Highest food grade ice making plant
2. Fully automatic ice making, ice freezing and ice packing
3. Non-dust ice making workshop
Customer's Need:
1. 90 tons tube ice making
2. Automatic and highest food grade ice factory
Tube Ice Maker Machine Project overview

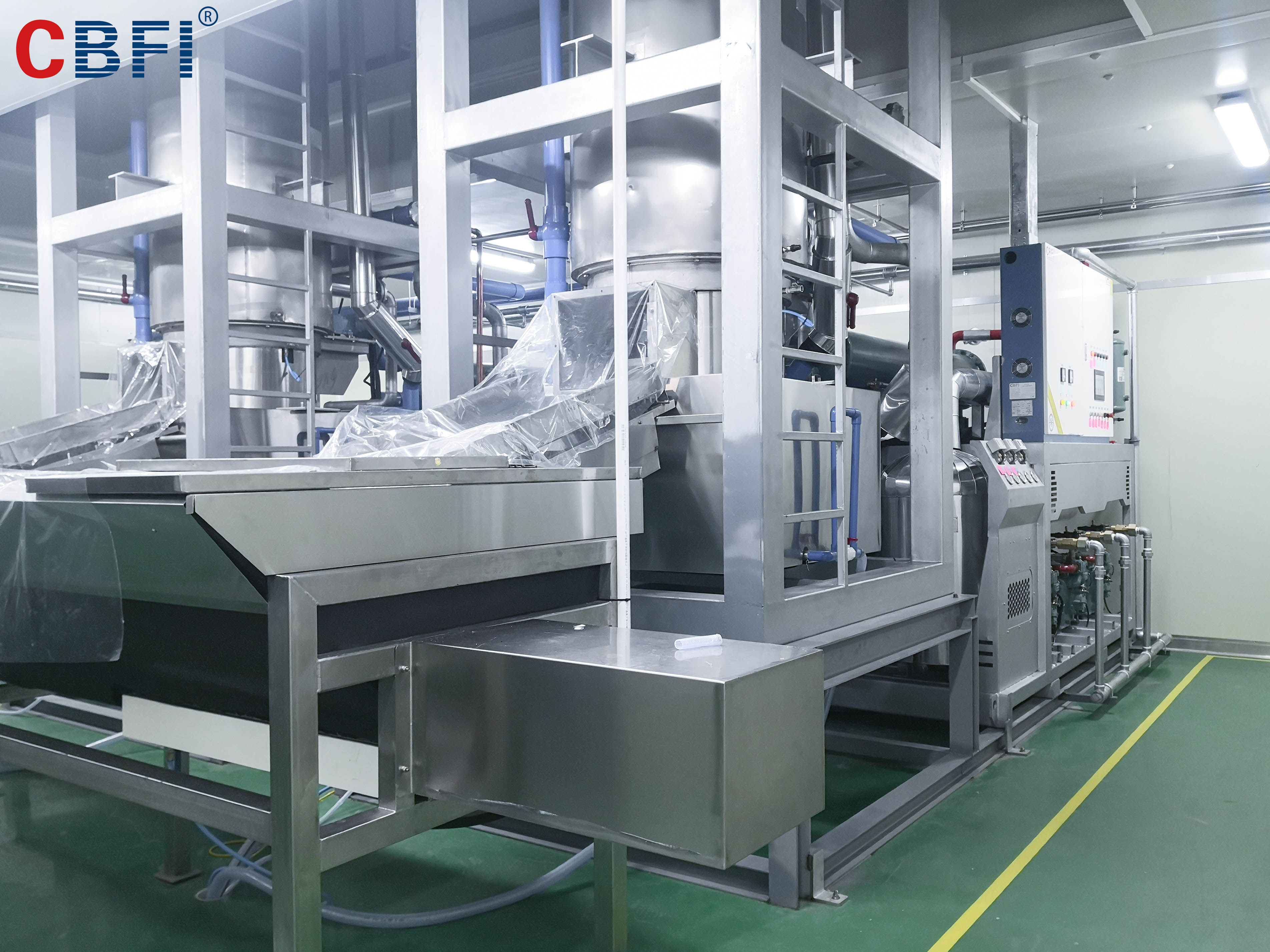

South Korea's 60-ton Tube Ice Machine Site

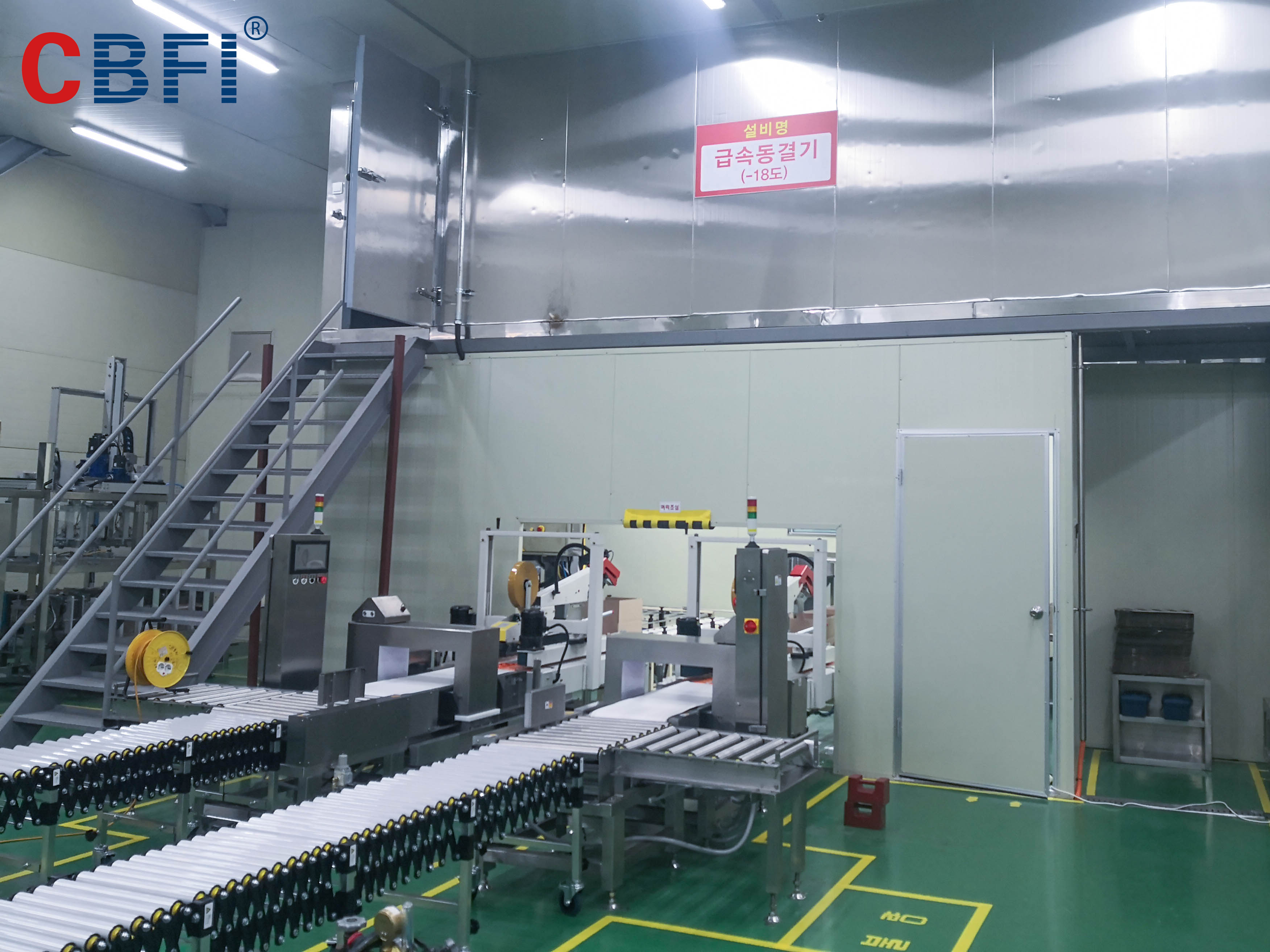

Automated Transport Line

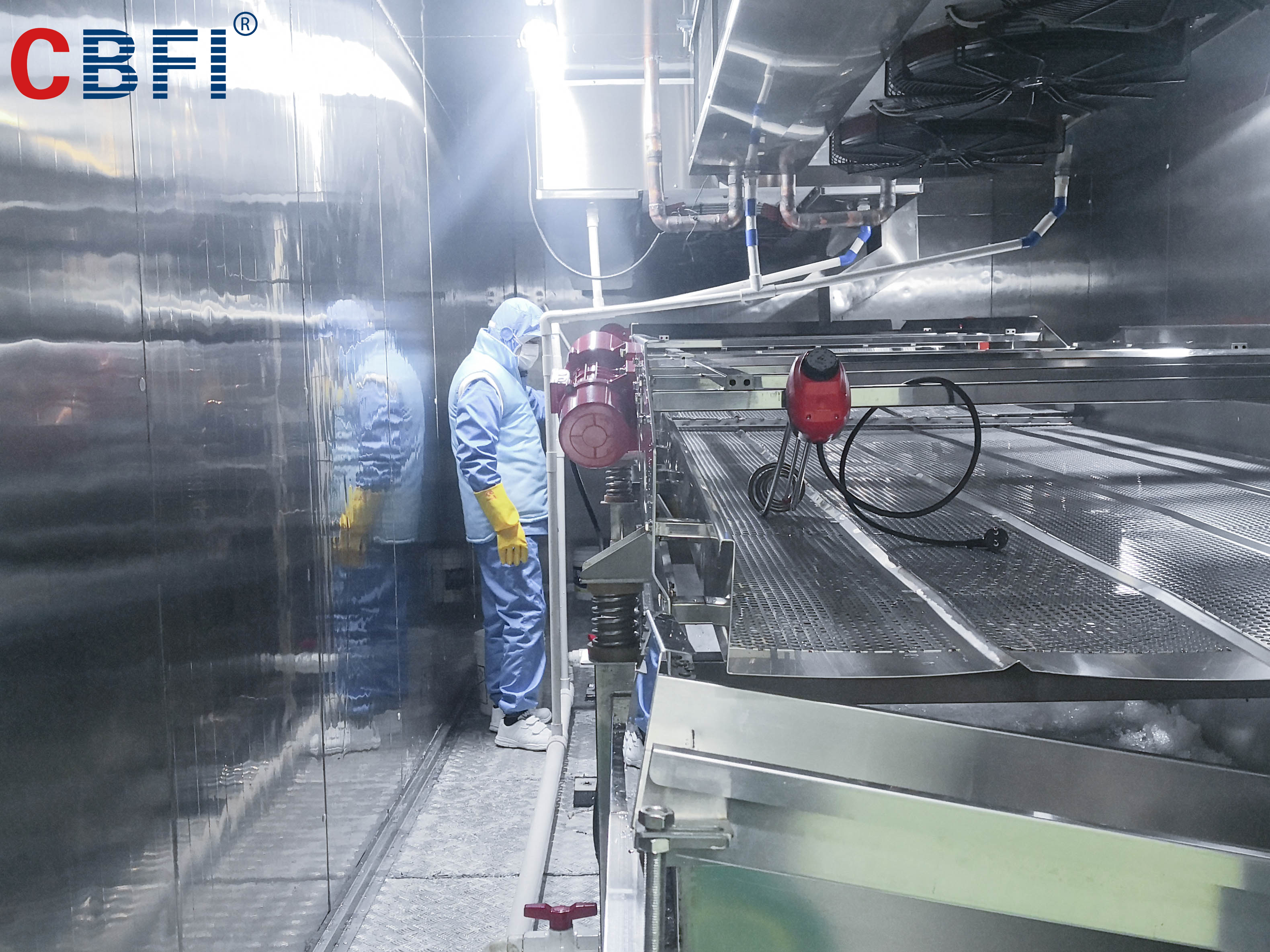

Ice Sprinkler
Characteristics Of The Project Area:
1. Highest food grade ice making plant
2. Fully automatic ice making, ice freezing and ice packing
3. Non-dust ice making workshop
Purchased Equipment:2 sets of 30 tons tube ice machine with South Korea Standard, ice screening system, 90 tons tube ice drying and freezing system, 14 tons tube ice storage bin, conveyor belts and lift conveyors and others.
Characteristics Of The Project:
1. Automatic
2. Highest food grade
Reason For Successful Order:
1. CBFI is the only supplier in China now who could export the 30 tons tube ice machines to South Korea
2. CBFI supplys the South Korea standard machines for clients
3. Sales people has the professional the intime services
Tube Ice Machine Product Parameter
| TV300 30 ton Tube Ice Machine Parameters |
| Name | Unit | Parameter |
| Tube Diameter | mm | Φ22 | Φ28 | Φ35 |
| Compressor Parameter | Model | 6FE-50*30 |
| Cooling Capacity(kW) | 240 |
| Power(kW) | 83.6 |
| Condenser | Model | WN-180 |
| Heat Exchange(kW) | 596 |
| Condensing Temperature | Degree Celsius(℃) | 40 |
| Evaporating Temperature | Degree Celsius(℃) | -12 |
| Ambient Temperature | Degree Celsius(℃) | 32 |
| Water Temperature | Degree Celsius(℃) | 20 |
| Refrigerant | | Ammonia R717 |
| Voltage | V/P/HZ | 380/3/50 |
| Motor Power | Ice Cutting Motor(kW) | 1.5 |
| Recircling Pump(kW) | 4 |
| Cooling Tower | Model | LX-125 |
| Power(kW) | 2.2 |
| Cooling Pump | Model | GD100-19 |
| Power | 7.5 |
| Cooling Fan Power | Power(kW) | 2.2 |
| Water Cooling Machine Dimension | Main Body L*W*H(mm) | 3100*2200*2500 |
| Evaporator L*W*H(mm) | 1800*1500*5700 |
| Refrigerant Quantity | kg | 900 | 1000 | 1100 |
| Machine Weight | kg | 7200 |
Tube Ice Machine Applications
Tube ice is widely used in drink cooling, food processing, fishery, food preservation, supermarket and other areas. There are many different type of tube ice.The outer diameter of the ice tube is φ22 mm, φ28 mm, φ35 mm, etc. and the length is between 25~45 mm, and the inner diameter can be adjusted during the ice forming process usually between φ5~10 mm. The ice tube is thick and crystal clear, and it takes a long time to melt or store.
FAQ
1. Who are we?
We are based in Guangdong, China, start from 2010,sell to Domestic Market(19.00%),
Southeast Asia(16.00%),Africa(15.00%),Mid East(14.00%),South Asia(12.00%),South America(10.00%),
Eastern Asia(6.00%),Eastern Europe(4.00%),Oceania(4.00%). There are total about 101-200 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3. What can you buy from us?
Ice Block Machine,Ice Cube Machine,Ice Tube Machine,Ice Flake Machine,Cold Room
4. Why should you buy from us not from other suppliers?
We Guangzhou Icesource Refrigeration Equipment CO., LTD Specializes in innovating, designing, manufacturing various commercial and industrial ice machines and cold room with more than 10 years experience. Our Engineer department keep pursuing the newest technology.
5. What services can we provide?
Accepted Delivery Terms: FOB；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,Credit Card,Cash;
Language Spoken:English,Chinese,Spanish
